West Coast Sectional Frame Tent 20' x 40'

West Coast Sectional Frame Tent 20' x 40'

Product Code: SCWCFT-20x40

Approx. Dimensions:

Length Width Height Weight
20 ft 40 ft 17 ft 650 lb



Regular price $3,495.00
Regular price $5,195.00 Sale price $3,495.00
Sale Sold out
Shipping calculated at checkout.

Select product options:

*price updates based on your selection(S)
Free add-ons
Must have add-ons
View full details

SCWCFT-20x40 West Coast Sectional Frame Tent 20' x 40'

Safer, Stronger, and Lighter TM

Specification Information

PRODUCT CODE: SCWCFT-20x40
PRODUCT NAME: West Coast Sectional Frame Tent 20' x 40'
INFLATED DIMENSION: L X W X H
UNIT WEIGHT:
MAXIMUM CAPACITY: A 20'x40' West Coast Sectional Frame Tent accommodates 66 people for sit down dinners, 80 people for buffet style dinners, or 160 for stand up & cocktail style dinners.
DESCRIPTION:

20'x40' West Coast Sectional Frame Tent, 16 oz block-out vinyl tent top, 2" Aluminum Frame, 7' legs.  Side wall is optional.

***Stakes, Ratchets are not included***

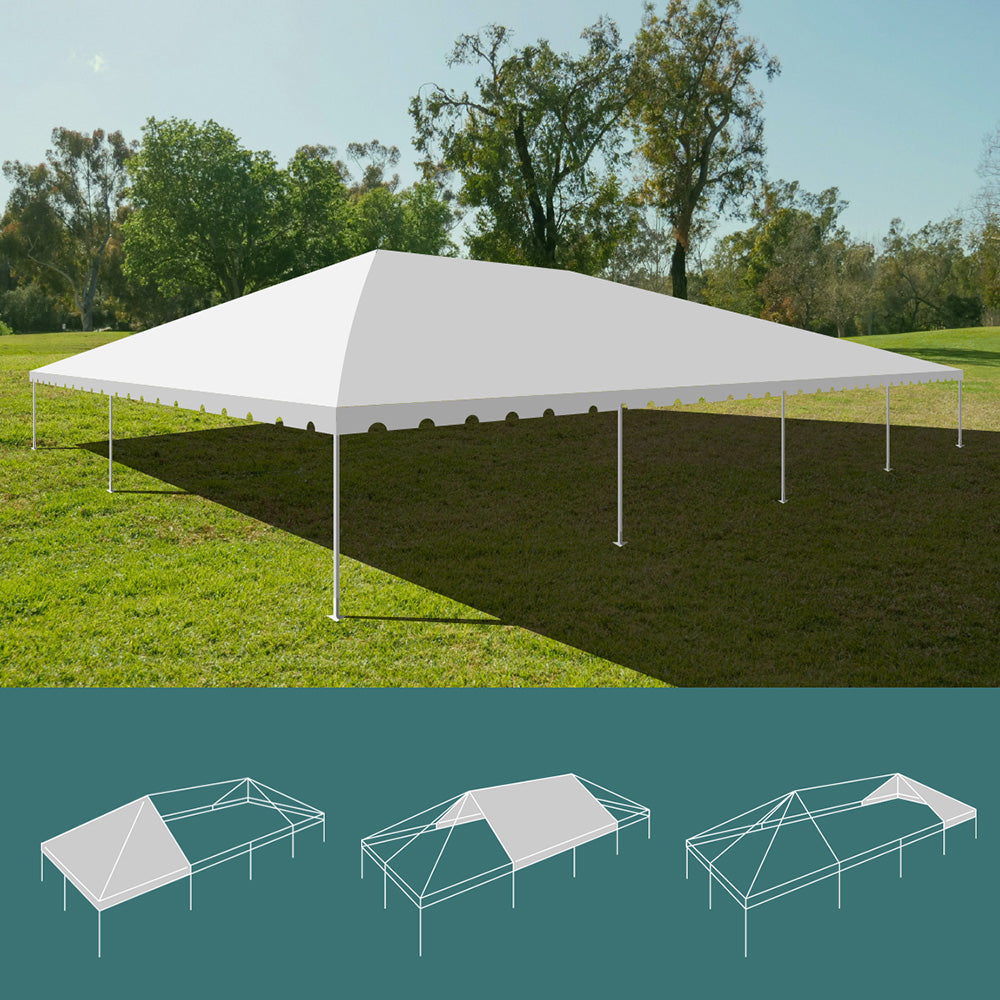

This is a sectional frame tent. The tent top comes with one 10'x20' left end piece, one 10'x20' right end piece, and one 20'x20' middle pieces. Lacing all three pieces together to make a 20'x40' tent top. It can also add more middle section in 20'x20' size to expand the tent to 20'x60', 20'x80', etc. In addition, one could only use the 10'x20' left end piece and the 10'x20' right end piece to create a 20'x20' tent top.



Material: Tent top is made of Commercial grade, 16 oz, Fire Retardant, UV Resistant, Block-Out vinyl material, Frames & Poles are 2" anodized aluminum tube.

Safety: All Moonwalk USA tents use Fire Retardant and UV Resistant vinyl material that meet or exceed the National Fire Protection Association fire resistant standards.

DisclaimerCalifornia Prop 65 Warning: This product can expose you to chemicals including Poly Vinyl Chloride (PVC), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, click this image or visit www.P65Warnings.ca.gov. Due to constant product development and improvement, artwork, shape, color, size, description, and schematic that appear on the web or catalog may not reflect the latest changes.

Features:

    • Commercial quality 16 oz block-out vinyl material
    • All panels are bonded with 1" heat sealed overlapped seams
    • Light n Strong 2" anodized aluminum frame

Tent Leg & Pole Sizes:

  • Tent Legs - 6' 8"
  • Hip Rafters - 14' 4" (2-piece design)
  • Rafters - 21' 10" (3-piece design)
  • Spreaders - 9' 4"
  • Corner Rafters - 10' 4"



    Capacity: A 20'x40' West Coast Sectional Frame Tent accommodates 66 people for sit down dinners, 80 people for buffet style dinners, or 160 for stand up & cocktail style dinners.

    Safety Ramp with Arms

    Finger-Proof Netting

    Safety Anchors

    Warning Sign

    Emergency Exit

    Safe-Play Basketball Hoop & Pop-ups on all Bouncers and Combos

    Reinforcements and double-material applied on all stress points

    Unique "Alligator Mouth" design to remove the stress concentrations

    Drains with "U" shape liner on all water slides and combos

    Sealed-Seam on all water units to prevent water get into the unit. It also a protection for the seams

    Coming Soon

    Your Purchase Includes:

      • 20'x40' Tent Top (in 3 pieces)
      • Frame & Poles
      • Fittings

    Options(Not Included)

      • Side Walls (7'H)
      • (20) 36"x1"D or 42"x1"D Stakes
      • (20) 2" White Ratchets
